H907-HF-1 单组份粘接胶变压器磁芯与磁芯面对面粘接胶

在线订购
产品详情

H907-HF-1系非溶剂型单组份低黏度环氧树脂低卤产品,本产品具有粘度低、材料颗粒度细且具有低线膨胀系数及耐高温、抗冲击、耐震动、粘接强度高、硬度高等特性;广泛应用于各类电子元器件、电工电器、机电五金、磁性元件、光电产品、汽配组件等之粘接固定,对于金属、陶瓷、玻璃、纤维制品及硬质塑胶之间的封装粘接,有优异的粘接强度;也可用于各类电子元组件封装密封、防水绝缘等;推荐用于变压器的铁芯或磁芯功能面的粘接固定。

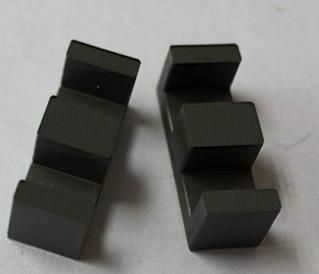

H907-HF-1 单组份粘接胶变压器磁芯与磁芯面对面粘接胶(图1)

二、外观及物性
外观                             粘稠流状
颜色                              黑色
比重(25℃)            1.45-1.55
 粘度 (25℃)         15000-30000 cps
保存期限                    25度2个月,5度3个月
包装                            1KG或5KG
三、固化条件:   120℃/1-1.5小时;
四、固化后特性
       硬     度            Shore D       85-95
       体积电阻        Ω-cm    4.7×1014
       表面电阻         Ω-cm           5.8×1013       磁芯对接面粘接强度   大于25KG
       抗弯强度          kg/mm2         12.1
     绝缘破坏电压    kv/mm   18-20
       抗拉强度          kg/mm2         6.2

------------------------------------------------------------------------------------------------------------------------

One-component adhesive glue H907 - HF - 1 transformer magnetic core and core adhesive glue face to face

H907 - HF - 1 series solvent free low halogen one-component low viscosity epoxy resin products, this product has low viscosity, low material granularity fine and with linear expansion coefficient and high temperature resistant, impact resistant, resistant to vibration, high bonding strength, high hardness characteristics; Are widely used in all kinds of electronic components, electrical appliances, electrical and mechanical hardware, magnetic components, optoelectronic products, automobile components, such as the bonding fixed, for metal, ceramics, glass, fiber products and hard plastic encapsulation adhesive between has excellent bonding strength; RMB can also be used for all kinds of electronic components packaging seal, waterproof insulation, etc.; Recommended for transformer iron core or on the surface of the core functions of bonding fixed.
